[.FLAC Rip] Config EAC 1.0 beta 3

Exact Audio copy EAC Settingss Setări Flac Lossless Rip

  • Please log in to reply
10 replies to this topic

#1 nFo



  • Administrators
  • 1,432 posts
  • LocationBehind you...

Posted 21 December 2014 - 10:14 AM

Step 1: Download and install EAC Download the installer and fire it up.


Eventually you'll get to a screen like this. Make sure you install AccurateRip, CDRDAO, CTDB and freedb as a bare minimum. FLAC will be useful as well if you don't have it separately installed. GD3 is only useful if you want to pay for metadata results. I assume you don't.

Note: The above screenshot is from Beta 3. The new Beta 3 adds the option to include the CueTools Database Plugin. It is recommended to install it but not required. Full details for installation of the plugin on older versions is located in the appendix at the end of this guide.

Step 2: Start EAC


When you first start EAC, you'll see a screen like this one. Hit "Cancel". Next, put a popular CD into your drive, preferably not one that was recently released (a few months old at least). You'll see a window like the one below appear. If you have an older version of EAC or dBpoweramp installed, it's likely AccurateRip was already configured, and this may not appear.


Hit Configure. It may take a few minutes. Hit "Ok" afterward. Once again, if you have an older version of EAC or dBpoweramp installed, it's likely AccurateRip was already configured, and this may not appear.

Step 3: EAC Options
All of the options dialogs can be found from the EAC menu at the top of the screen.

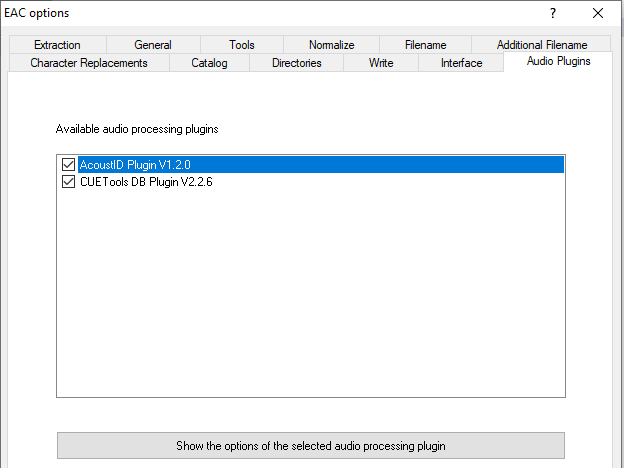

Start with EAC Options. Any tabs not pictured are completely optional settings, or are irrelevant to ripping.


Make sure you set the green highlighted settings as shown. If you're using an older version of EAC, make sure "No use of null samples for CRC calculations is UNCHECKED. The rest is optional, choose as you will. Locking the drive tray during extraction isn't a bad idea though.


These settings are pretty much all optional and self explanatory. I'd recommend using Alternate CD play routines and disabling autostart though.

The "Show status dialog after extraction" option setting has been problematic for some users. This displays the log after the rip is done, and offers you the option to save the log file. If you follow this guide, EAC will do this automatically. Do NOT hit "Save Log". As such I've disabled the setting here. Only turn it on if you know what you're doing.

The "Create log files always in english language" is very important for our international users. This will let you keep EAC's language as your native one, but write the log file in English, allowing it to pass our logchecker without needing to be rescored manually.


If your drive is capable of reading UPC/ISRC codes and CD-Text (you can only really figure this out by trial and error), you're welcome to keep the top two options checked. Otherwise, uncheck them.

Other than that, these settings are pretty much ideal. I wouldn't recommend using more than 1 compressor thread even if you have a multicore computer. It doesn't take very long compared to the track extraction anyway. Note that in tests run by punkmeup, disabling the queue of external compressors in the background fixed an issue where EAC was generating WAV files instead of FLAC, so I've made that a required option. It should have no bearing on the rip quality. If rip queueing works for you (it does for me), feel free to leave it enabled.


Friends don't let friends normalize their EAC rips. Don't ever do it. It will instantly be given a 0% by the logchecker.


As shown in the screenshot above here is the proper way to name tracks.

Naming Convention : %albumartist%_-_%albumtitle%-CD-FLAC-%year%-MiNT\%tracknr2%-%title%

Check 'Use Various Artists Naming Scheme' and use : VA_-_%albumtitle%-CD-FLAC-%year%-MiNT\%tracknr2%-%artist%_-_%title%

The only difference acceptable here would be perhaps %tracknr2%. %title% if you prefer periods instead of dashes in the filenames. If you need track numbers to go into triple digits for some reason, use %tracknr3% instead.

Replace spaces by underscores. Linux users will be grateful ;).

A note on directory naming schemes:

Don't use a directory structure here, unless you want to go back and edit your CUE sheet later. When you add a directory to the naming scheme, it'll put that directory path into the files. Then when someone goes to burn the files in EAC using your cuesheet, they'll be unable to do so. If you do insist on using a directory structure here, you need to go back, edit the CUE in a program such as notepad, and remove the folder name from each line.

For example, a cuesheet line should look like this:

FILE "01 Last Known Surroundings.wav" WAVE

Not like this:

FILE "C:\EAC Rips\Explosions in the Sky - Take Care, Take Care, Take Care (2011) [FLAC]\01 Last Known Surroundings.wav" WAVE

A guide for batch editing your cuesheets in this manner can be found here.

If you insist on doing this, the scheme might look something like this:
%artist% - %albumtitle% (%year%) [FLAC]\%tracknr2% - %title%

Follow the listed items on the Filename tab if you prefer a different scheme.

Step 4: Drive Options


Start by hitting "Detect Read Features...". This will actually take a few minutes. The only feature detection that actually matters is Accurate Stream. If your drive can use it, checkmark the setting (most modern drives have Accurate Stream). If it can't, don't.

Even if your drive doesn't cache audio, just do us a favour and leave that checked. Not only will it stop you from having to have each of your uploads rescored by hand, but it doesn't affect the audio quality at all. Yes, the rips take a bit longer with that setting enabled. Go watch TV or something while you wait.

Do not use C2, even if EAC thinks you can. Most drives have terrible C2 error implementation.


Hit "Autodetect read command now". It shouldn't take long. Leave everything else unchecked unless you're having problems. You can checkmark "CD-Text Read capable drive" if you want to test whether your drive can do it. If it can, great, otherwise, uncheck it. It's unlikely you'll ever use that feature anyway.


If you did the AccurateRip configuration at the start of this guide, the top half here will be greyed out. If not, you'll need to find your read offset correction from this list. Don't use a combined read/write offset.

If you want to figure out whether your drive needs "Overread into Lead-in and Lead-Out" checked, you can check by temporarily unchecking "Use AccurateRip with this drive". Stick a CD in the drive and hit "Detect read sample offset correction...". If you're just doing this for the Overread, see below:

blowfish.be wrote:

Check "Overread Lead-In and Lead-Out" only if the test result says that your drive can overread from both the Lead-In and Lead-Out, or if it says Lead-Out and your offset correction is positive ,or if it says Lead-In and your offset correction is negative. Otherwise disable (uncheck) it.

Remember to check "Use AccurateRip with this drive" again once you're finished. AccurateRip is necessary for a 100% log.


Pretty much every drive should work with the settings shown. If yours stalls on detecting gaps or detects gaps that are obviously wrong (like 30 second gaps on a non-live album), try Detection method B or C. If A, B, and C all fail, you can switch "Secure" to "Accurate" and try again.

Step 5: Metadata Options


Here's where you pick your metadata provider. If you did install GD3, it'll be in the list. You can only rip 10 discs before you have to pay for a subscription though. Otherwise, you have a choice between the MusicBrainz plugin (CTDB), freedb plugin and EAC's native freedb support. I'm not really sure what the big difference is, I'm guessing it's the cover+lyrics. Anyway, change those settings above if you wish.


If you use EAC's native freedb instead, the settings should look like this. Make sure you put an email at the top, it doesn't need to be real. Hit "Get active freedb server list". Then checkmark the last option.

Step 6: Compression Options


Set up this tab exactly as shown. You'll have to browse to the path where you have flac.exe, if you installed it with EAC it's in C:\Program Files (x86)\Exact Audio Copy\FLAC\flac.exe. If you installed it separately it's wherever you installed it. The bit rate and high/low quality have no effect on the rip.

The commandline parameters have changed in this version, so this will look new to most of you. The commandline recommended for optimal completeness is this:

-8 -V -T "ARTIST=%artist%" -T "TITLE=%title%" -T "ALBUM=%albumtitle%" -T "DATE=%year%" -T "TRACKNUMBER=%tracknr%" -T "GENRE=%genre%" -T "PERFORMER=%albuminterpret%" -T "COMPOSER=%composer%" %haslyrics%--tag-from-file=LYRICS="%lyricsfile%"%haslyrics% -T "ALBUMARTIST=%albumartist%" -T "DISCNUMBER=%cdnumber%" -T "TOTALDISCS=%totalcds%" -T "TOTALTRACKS=%numtracks%" -T "COMMENT=http://musictorrents.org" %source% -o %dest%

It takes no extra effort on your part, just copy and paste that into the additional commandline options and you're done.

Note: the %comment% function is broken in version 1.0b2 (it returns the track CRC). Use something like -T "COMMENT=EAC V1.0 beta 2, Secure Mode, Test & Copy, AccurateRip, FLAC -8" instead.

Also, as of Beta 3 you may use the %tracknr1% variable instead of %tracknr% if you would like to have no leading zeroes in the track number field (like XLD does). tracknr1 will use, for example, '1' instead of '01'.


Leave everything unchecked except the last option.

Congrats! EAC is now properly set up! You may wish to save your settings in a profile by hitting "New" at the bottom of the screen. However, unless you're changing your settings frequently there's no need, EAC will remember all of this on next launch regardless.

Step 7: Ripping


So now let's look at the main window. Be sure everything is named correctly here, as these will be the tags on your ripped files. If you're ripping a classical CD, you may wish to fill in the Composer/Performer fields.

Drag a cover image into the EAC window. I think ~500x500 is a decent size in most cases. Google images is your friend here.

If you're ripping a box set, you may wish to use the options under the cover image, otherwise leave them all as "1".

Finally, if you want to add lyrics to the tracks, use the "Lyrics" button.

Note: I've also highlighted the "New" button where you can save your settings. This is not a necessary step each time you rip.

Step 2: Gap Detection and Cuesheets


The pre-rip stuff happens here. Make sure "Append Gaps to Previous Track (default)" is checked. It should be. Next, hit the options in the order shown.

First, hit "Detect Gaps". This is very important, your rip will fail the logchecker if you do not complete this step. If the first track is highlighted in red, you have a hidden track. You'll want to look at this section of the blowfish.be guide.

Next, go to Create CUE Sheet -> Multiple WAV Files With Gaps... (Noncompliant). This is usually where I create the folder for ripping as well. Do NOT rip your tracks to any directory containing your name. You should NEVER edit a log for any reason, especially now that we have checksums. A simple C:\EAC Rips is fine.

I name my directories as follows:
Artist - Album (Year) [Format] {Extra}

So for example, with the album in the screenshots, it'd be

Sam Roberts Band - Collider (2011) [FLAC] {UMC 0252764577}

However, as long as it contains the album name and no nested folders (don't do \Artist\Album\), you're fine by the rules here.

Anyway, make the folder, save the .cue file into it. I usually just name mine Noncompliant.cue, it doesn't really matter.

Step 3: Ripping


Finally, the rip itself! Make sure all the tracks are checkmarked in the main window unless there are some you don't want to rip.

Test & Copy -> Compressed.

Depending on your drive and whether or not the CD is scratched, this could take anywhere from ten minutes to four hours. Be patient.

There's a known bug in EAC where opening the file select dialog will crash the program on some machines. You can use a temporary work-around by setting a manual directory for each rip in EAC Options->Directories. You can see an example of this below. Pressing "Browse" on this screen will likely crash the program as well, so you may need to type or paste in the path by hand.

Step 4: Post-Rip

So you're done! You may wish to use logchecker.php to check and make sure your rip is proper, but if you followed this guide, the only possible errors would be with the CD itself. It does happen... some CDs are too badly damaged, even for EAC. Your best bet is to clean the CD and try again.

Other than that, it never hurts to make sure your files are tagged and named properly (though they should be). Any extra stuff you want to include should be added now as well... Additional artwork, an md5 fingerprint, an info.txt file, that sort of thing. If you don't want to do any of that, it's time to find yourself an uploading guide!

Va Multumesc Pentru Atentie !

  • PiratulNeinfricat, whothefuckisnelu, maharet and 1 other like this

Stai chill...

#2 cmdx26



  • Members
  • Pip
  • 7 posts

Posted 27 December 2014 - 03:25 AM

tutorial foarte bun va ajuta foarte mult Multumesc pentru partajarea ..

  • PiratulNeinfricat likes this

#3 PiratulNeinfricat



  • Members
  • PipPipPip
  • 82 posts
  • Locationro

Posted 17 January 2015 - 11:12 PM

Tutorialul nu este complet, lipsește partea cu setarea locației unde să salveze melodiile extrase, însă este ușor de găsit prin setări. Se poate și pentru versiunea 0.99 pb5?

#4 nFo



  • Administrators
  • 1,432 posts
  • LocationBehind you...

Posted 17 January 2015 - 11:52 PM

Se mentioneaza :

1. Do NOT rip your tracks to any directory containing your name.

2. You can use a temporary work-around by setting a manual directory for each rip in EAC Options->Directories


Totusi, daca reusesti sa urmezi si sa aplici un astfel de tutorial, setarea folderului default de extractie este o floare la ureche.

  • PiratulNeinfricat likes this

Stai chill...

#5 maharet



  • Members
  • PipPipPipPipPip
  • 253 posts

Posted 04 March 2015 - 01:40 PM


Posted ImagePosted Image

#6 PiratulNeinfricat



  • Members
  • PipPipPip
  • 82 posts
  • Locationro

Posted 18 October 2015 - 02:42 AM

Am instalat și configurat EAC 1.1 folosind acest ghid, apoi am copiat câteva albume. Există vreun program sau site cu ajutorul căruia să verific log-ul extracției? Am folosit acest site, însă e compatibil doar cu versiuni mai vechi de EAC.

#7 nFo



  • Administrators
  • 1,432 posts
  • LocationBehind you...

Posted 18 October 2015 - 11:03 AM

vezi ca ai pe tracker pagina > > > /logchecker.php

  • PiratulNeinfricat likes this

Stai chill...

#8 nFo



  • Administrators
  • 1,432 posts
  • LocationBehind you...

Posted 03 January 2016 - 02:56 PM

revin cu 2 micro optimizari (pentru a preveni limita de 260 de caractere din windows si a what.cd a filename-ului sau filepath-ului)


1. Naming Convention : %albumartist%_-_%albumtitle%-CD-FLAC-%year%-MiNT\%tracknr2%-%artist%_-_%title%

sa devina : Naming Convention : %albumartist%_-_%albumtitle%-CD-FLAC-%year%-MiNT\%tracknr2%-%title%


se elimina %artist% din numele track-ului deoarece avem aceasta informatie atat in tagurile melodiei dar si in numele folderului albumului


2. Cand editati o piesa, recomand sa se elimine "featuring" /sau/ "feat." si sa se inlocuisca cu românescul "cu

  • PiratulNeinfricat likes this

Stai chill...

#9 nFo



  • Administrators
  • 1,432 posts
  • LocationBehind you...

Posted 21 October 2016 - 04:14 PM

EAC 1.3 : Lansat : 2016-09-05


se descarca de pe

http://www.exactaudi...urces/download/ >  ( hosting pe netzwelt.de )



what are the improvements on these new versions?



EAC v1.3 (03-Sep-16)

As the last version had some quirks in the track selection handling, I release this fix for the problem of selecting tracks individually. Sorry about the problems!


EAC v1.2 (August 13th)

What’s new in version 1.2

- Fixed several issues with the CDRDAO burning component
- Updated the cover search in the freedb++ metadata provider
- Fixed defect EAC menu for beginner mode
- Different handling of track selection: Several selected tracks can be checked at once
- Different handling of track selection: Playback will only playback selected track instead of checked tracks
- AcoustID plugin will be pre-selected on installation
- Function "Upper all first characters" will not upper after a number (e.g 8th)
- CUE sheets will receive the composer as remark
- Fixed a very rare occuring problem of not finding an AR checksum for a given track
- Fixed a rare occuring problem of not finding a read command

  • Haplea likes this

Stai chill...

#10 TlMlD



  • Members
  • Pip
  • 4 posts

Posted 18 January 2017 - 02:25 PM

Sunt pe multe trackere, am CD-uri, dar cind ajunge sa setez EAC ma omoara etapa data. ((

Nu am ideie cum mai bine sa il setez in asa fel ca sa fie convinabil setarile pentru trackerele ca Pedros, MT, PHT ?!

#11 nFo



  • Administrators
  • 1,432 posts
  • LocationBehind you...

Posted 18 January 2017 - 09:26 PM

cum e mai sus (secure rip + detect gaps + test & copy) e acceptat peste tot


10 minute sunt suficiente, dar trebuie sa nu fii lenes...
